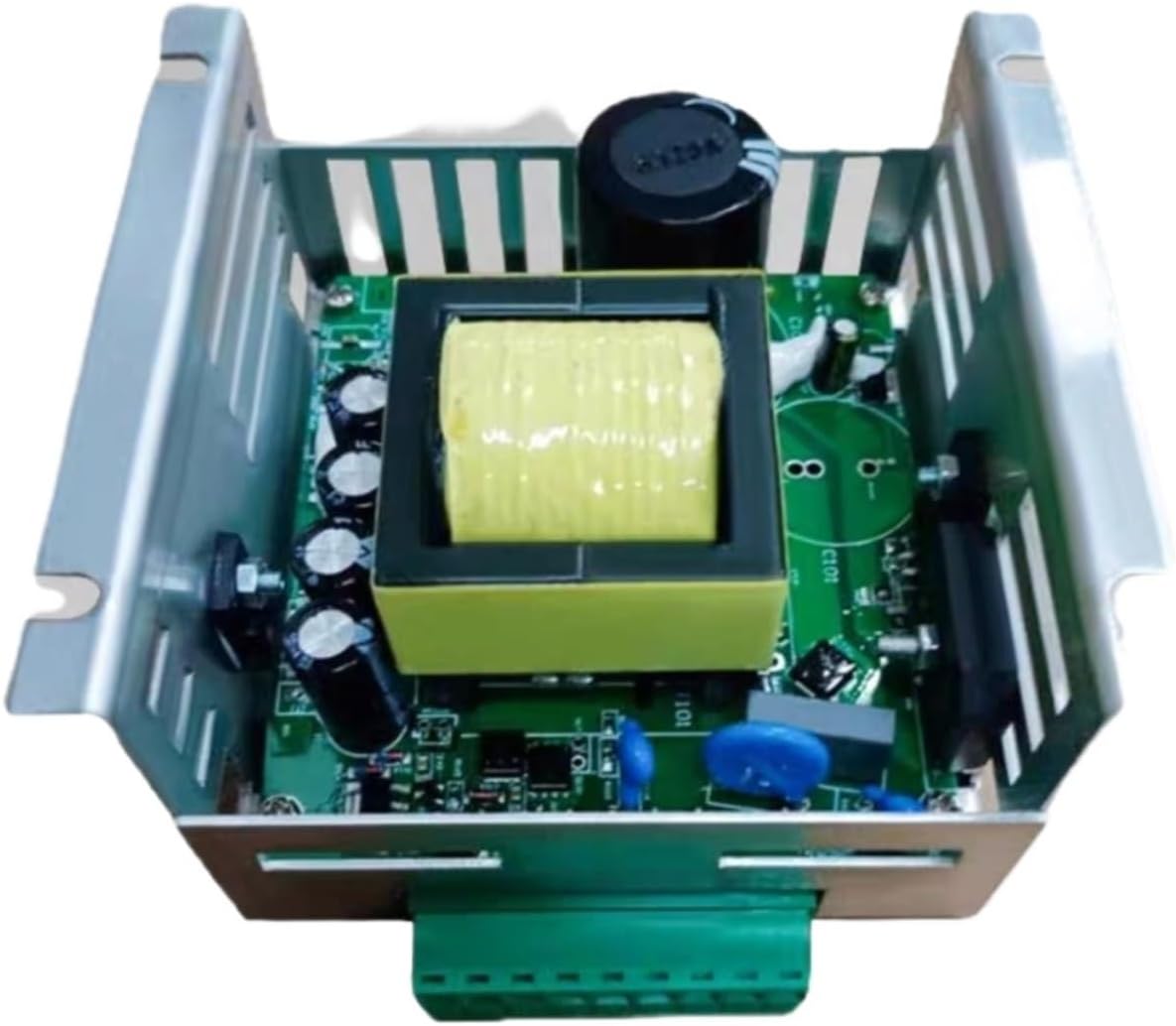

BC-10A-M BC-10A Smart Battery Charger 12/24V Auto Select 10 Amp High Efficiency Short Circuit Kit

BC-10A-M BC-10A Smart BatteryCharger 12/24V Auto Select 10 Amp BC-10A chargers are designed in high efficiency, forward 100 kHz switchmode technology. Thanks to their smart charging algorithm, they charge batteries faster than conventional chargers.Fast charging is achieved by maintaining the highest possible charging voltage at battery terminals and resuming to the float charge voltage when the battery is fully charged.The regenerative charging algorithm extends battery life by applying periodic regenerative charging cycles.Chargers offer automatic battery voltage detection. Thus the same unit operates as 12V or 24V without the need of a manual selection, removing human errors.The charger measures its internally its output voltage. If the voltage is below 18V, it operates in 12V mode. If the voltage is above 18V then it operates in 24V mode. If no battery is connected then it will operate in 12V mode.BC-10A charges both lead-acid and Nickel-Cadmium batteries. It is specially designed for permanent connection to genset starter batteries and does not require disconnection during cranking. Thanks to its continuous outputs, it may also be used in a wide range of industrial applications where power is required.FEATURES:100 kHz forward switchmode architectureHigh efficieny > 91.0%Life extending regenerative charging featureAutomatic output voltage selection: 12/24VMicroprocessor controlledEasy to use, DIP switch selectionsSelectable two, three or four stage chargingSupports lead-acid and NiCd batteriesAnalog current reading output (0-10V)Output voltage and current display (optional)Rectifier fail outputBoost charge inputOverload and short circuit protectedWide operating temperature rangeThermal protectionLow output rippleLow line and load regulationWide operating voltage rangeSmall dimensionsLow weightRugged design for industrial environments==========Model Number : BC-10A-MDIY Supplies : ELECTRICAL
